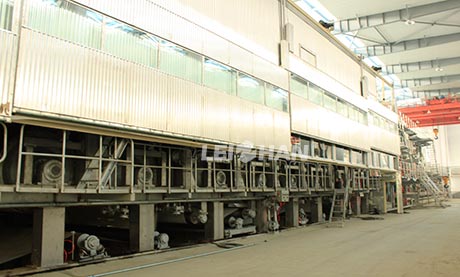

2400mm Multi-Cylinder Multi-Net Kraft Paper Pulp Making Line

Pulping: Raw material like wood pulp, recycled paper will be conveyed into H.C. Pulper, D type Hydrapulper for pulping.

Cleaning: Heavy impurities in paper pulp will be removed use High- and Low-density Pulp Cleaner.

Screening: M.C Pressure Screen, Reject Separator will be used for coarse and fine screening of paper pulp.

Refiner: Pulp Refiner machine will be used for improving the breaking degree of paper pulp

2400mm Multi-Cylinder Multi-Net Kraft Paper Machine Parameters

Raw Material: Waste Paper

Trimmed Width: 2400mm

Basis Weight: 80-350g/m²

Operating Speed: 80-120m/min

Production Capacity: 40-55tpd

Gauge: 3200mm

Transimission Way: AC variable frequency, section drive

Leizhan can offer you the whole set of 2400mm Multi-Cylinder Multi-Net Kraft Paper Machine. Advanced technology and rich experience in papermaking machinery make our products sell well at home and abroad. Any interest, contact us.
