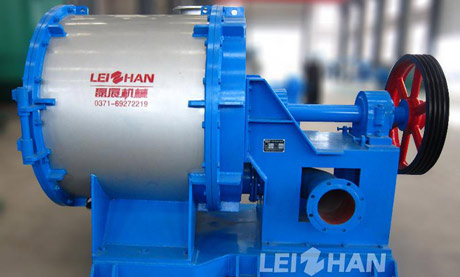

Single Effect Fiber Separator
Main Specification
| Type | ZDFD2 | ZDFD3 | ZDFD4 |
| Production Capacity (t/d) | 50-70 | 80-120 | 180-250 |
| Concentration of Input Pulp(%) | 2-4 | ||
| Pressure of Input Pulp (Mpa) | 0.15-0.20 | ||
| Pressure Difference (Mpa) | 0.03-0.05 | ||
| Power of Motor (Kw) | 45 | 55 | 75-90 |
| Type | ZDFD5 | ZDFD6 | ZDFD7 |
| Production Capacity(t/d) | 280-360 | 300-400 | 400-500 |
| Concentration of Input Pulp(%) | 2-4 | ||
| Pressure of Input Pulp(Mpa) | 0.15-0.20 | ||
| Pressure Difference(Mpa) | 0.03-0.05 | ||
| Power of Motor(Kw) | 160 | 200 | 280 |
Work Principle
ZDFD Series single effect fiber separator machine is a combination of one sealed horizontal hydrapulper and a light & heavy impurity remover. Drum and turbo structure ensures the high efficiency of the device. With compact structure, high efficiency, it has functions such as pulp beating, impurity removing, coarse screening etc, thus simplifies the process of dealing with wasted paper greatly, and reduces the energy consumption. Capacities vary depending on feed size, feed rate, operating conditions, desired product output, characteristics of feed material, and equipment configuration
