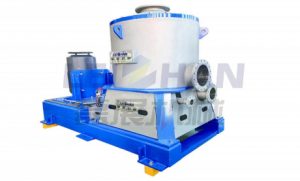

XZNS Series New Mid-Consistency Pressure Screen
XZNS Series New Mid-Consistency Pressure Screen is mainly used to remove heavy impurities by gravity, reduce wear on the rotor and screen basket, and prolong the service life.
Features
1. Improve the screening efficiency, better removal of stickies.
2. Significantly reduce energy consumption, energy saving up to 25%.
3. Further optimization of screen basket size, stronger adaptability, lower thickening coefficient, can effectively reduce fiber loss and reduce the possibility of clogging.
4. Easier maintenance and less unplanned downtime.
Technical Data
| Model | XZNS0.5 | XZNS0.9 | XZNS1.5 | XZNS2.3 | XZNS3.5 | XZNS4.7 | |
| Norminal are(㎡) | 0.5 | 0.88 | 1.49 | 2.3 | 3.53 | XZNS4.67 | |
| Screen hole size(mm) | Φ1.6-Φ3.5 | ||||||
| Screen slot size(mm) | 0.1-0.65 | ||||||
|
Production capacity(T/D) |
Coarse screen | 90-160 | 135-250 | 200-380 | 260-500 | 400-700 | 500-1000 |
| Fine screen | 20-100 | 30-150 | 50-230 | 70-300 | 100-450 |
120-700 |
|
| Inlet consistency (%) | 1-4 | ||||||
| Motor Power(kw) | 11-45 | 22-75 | 30-110 | 45-160 | 55-250 | 90-355 | |
